| Model | Description | Resolution | Line Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
|
VCI-L1GMIS1K1GM VCI-L1GM1K1GM-SWIR |
GigE Short-Wave Infrared Line Scan Cameras | Viewsecctv Infrared Cameras |
1024x1 | 20 KHZ | 12.5 μm | 12.8×0.025mm | 8bit | InGaAs CMOS | Mono | Global | Download |
|
VCI-L1GMIS1K2GM VCI-L1GM1K2GM-SWIR |
GigE Short-Wave Infrared Line Scan Cameras | Viewsecctv Infrared Cameras |
12048x2 | 40 KHZ | 12.5 μm | 12.8×0.025mm | 8bit | InGaAs CMOS | Mono | Global | Download |
| Model | Description | Resolution | Frame Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
|
VCI-A1GMIS030GM VCI-A1GM030GM-SWIR |
GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640×512 | 241 FPS | 5.0 μm | 1/4" | 10bit | InGaAs CMOS | Mono | Global | Download |
|
VCI-A1GMIS031GM VCI-A1GM031GM-SWIR |
GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640×512 | 350 FPS | 15.0 μm | 9.6×7.68mm | 10bit | InGaAs CMOS | Mono | Global | Download |
|
VCI-A1GMIS130GM VCI-A1GM130GM-SWIR |
GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280×1024 | 72 FPS | 5.0 μm | 1/2" | 12bit | InGaAs CMOS | Mono | Global | Download |
|
VCI-A1GMIS500GM VCI-A1GM500GM-SWIR |
GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
2592x2056 | 24 FPS | 3.45 μm | 1/1.4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A1GT130GM-SWIR-A | GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 90 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A1GT130GM-SWIR-B | GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 90 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A1GT033GM-SWIR-A | GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 257.8 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A1GT033GM-SWIR-B | GigE Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 257.8 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| Model | Description | Resolution | Frame Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-A3UT130GM-SWIR-A | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 200 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT130GM-SWIR-B | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 200 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT033GM-SWIR-A | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 400 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT033GM-SWIR-B | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 400 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT130GM-SWIR-V | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 223 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT033GM-SWIR-V | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 428.1 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT130GM-SWIR-C | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 132 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT130GM-SWIR-D | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1280x1024 | 132 FPS | 5 μm | 1/2" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT033GM-SWIR-C | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 258.8 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| VCI-A3UT033GM-SWIR-D | USB3.0 Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x512 | 258.8 FPS | 5 μm | 1/4" | 8bit | InGaAs CMOS | Mono | Global | Download |
| Model | Description | Resolution | Frame Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
|
VCI-A2UY130GM-SWIR VCI-A2UY130GM-NSWIR |
USB2.0 NIR Short-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
1296x964 | 18 FPS | 3.75 μm | 1/3" | 12bit | InGaAs CMOS | Mono | Global | Download |
| Model | Description | Resolution | Frame Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-ACL030-MLWIR | CameraLink Interface,VCI-ACL+MWIR+SWIR Series Uncooled Mantis Broadband Infrared Cameras / Medium/Long-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x480 | 30 FPS | 17 μm | 6.8×5.1mm | / | InGaAs CMOS | M/LWIR | / | Download |
| Model | Description | Resolution | Frame Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
|
VCI-AGTIFT012 VCI-AGTIFT012-TILWIR |
GigE Interface, Thermal Imaging LWIR Cameras, VCI-AGIFT+TI(Thermal Imaging)+LWIR Series / Thermal Imaging Long-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
640x480 | 30 FPS | 17 μm | 6.8×5.1mm | 14 bit |
Thermal Imaging |
TI+LWIR | AUTO | Download |
|
VCI-AGTIFT012 VCI-AGTIFT048-TILWIR |
GigE Interface, Thermal Imaging LWIR Cameras, VCI-AGIFT+TI(Thermal Imaging)+LWIR Series / Thermal Imaging Long-Wave Infrared Area Scan Cameras | Viewsecctv Infrared Cameras |
800x600 | 30 FPS | 17 μm | 1.0625" | 14 bit |
Thermal Imaging |
TI+LWIR | AUTO | Download |

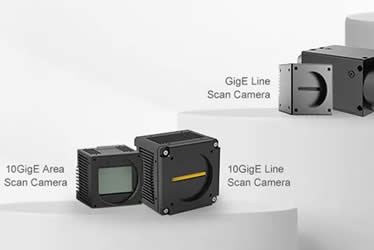

Viewsecctv line-scan camera has 256TDI technology, 256 times faster sensitivity than a regular camera, and has a 250K line frequency and a maximum 16K resolution.

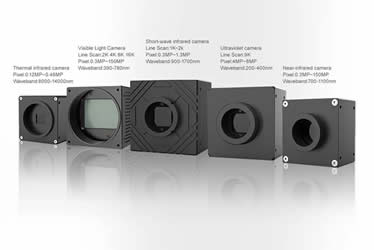

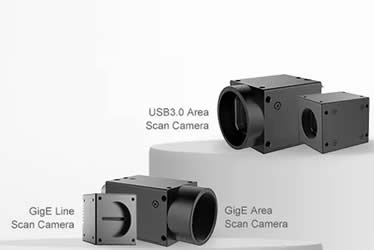

Viewsecctv Area Scan Camera have first-class image quality, and has a very high cost performance, with short-wave infrared, thermal infrared, visible light, ultraviolet series.
Viewsecctv Smart cameras well-rounded for industrial image processing.The X86 smart industrial cameras demonstrates its efficiency, accuracy, and stability.
Viewsecctv Infrared Camera, Short-wave Infrared Camera, Industrial Far Infrared Thermal lmager, Gigabit network interface, compatible with vision standard.
Nowadays, viewsecctv develops, manufactures, and sells cameras and the peripheral devices to the customers all over the world.
